Introduction

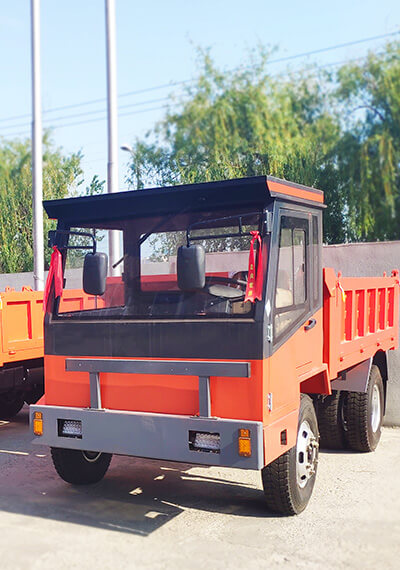

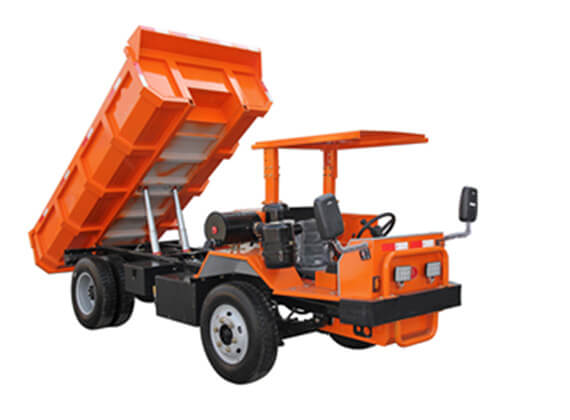

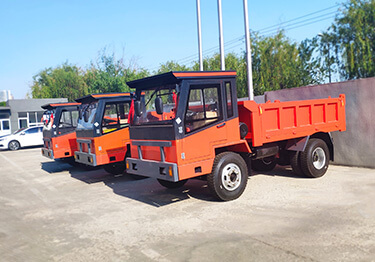

Small medium dumper is a type of surface dumper, which is used in the small and medium-sized mines, and has small capacity and low price.
Application
Small medium dumper is used in the small and medium-sized mines.
Advantages
Good pass ability:Compact structure, small turning radius, extremely flexible.
Good safety:Special anti-skid tires, with strong obstacle-crossing ability and good safety.
Strong power:Strong power, large torque, excellent climbing and starting performance.
Strong bearing capacity:The vehicle is designed scientifically and rationally according to the design concept of the mining vehicle, and the bearing capacity is 1.5 times that of ordinary road vehicles.
Technical Specification
| Capacity(m³) | Motorpower(kW) | Site(L×W×H mm) | Weight(t) |
| 2.2 | 46 | 4550×630×1450 | 3.5 |
| 4.3 | 81 | 5350×1770×1750 | 4.5 |
| 5.2 | 90 | 4920×2150×1750 | 4.8 |
| 6.3 | 118 | 5800×2250×1990 | 5.5 |
| 7.4 | 118 | 6400×2230×2050 | 6.2 |
If you have any questions, please contact us by the following ways, and we will provide you with better help!
Introduction

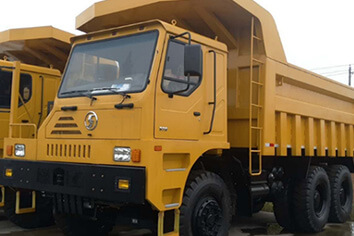

Big dumper is a type of surface dumper, which is applied in the large mines, and has the large capacity.
Application
Big dumper is applied in the large mines.
Technical Specification
| Drive form | 6×4 |
| Curb weight(kg) | 23000 |
| Capacity(t) | 60 |
| Dimensin(L×W×H)(mm) | 8760×3255×3950 |
| Max.speed(km/h) | 46 |
| Minimum ground clearance(mm) | 380 |
| Max grade ability(%) | ≥40 |
| Wheel base(mm) | 3750+1560 |
| Axle number | 3 |
| Cab | Offset mining cab |
| Engine brand | Weichai |
| Engine model | WD12G375E211 |
| Engine power | 375hp/276kw |
| Torque(N.m r.p. m) | 1500/1300-1500 |
| Emission Standard | E-ll |
| Gearbox | FAST 10JSD180K-B，10 Forward&2Reverse |
| Front axle | Peng xiang 12T |
| Rear axle | Peng xiang 25T×2 |
| Frame(mm) | Dual layer(10+8) |
| Tank capacity(L) | 380L Iron |
| Tire | 14.00-24 |
| Inner dimension of loading space(mm) | 5600×3000×1500 |
| Material thickness of loading(mm) | Bottom14mm,Side10mm,Fixed thickness 10mm of front plate |
| Lifting mode | Front Lifting |
If you have any questions, please contact us by the following ways, and we will provide you with better help!

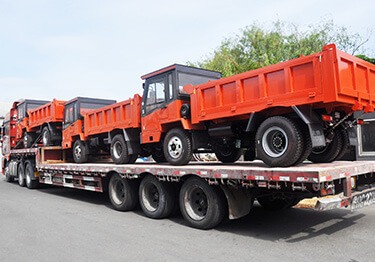

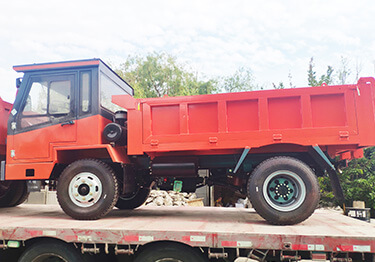

Packing & Shipping
