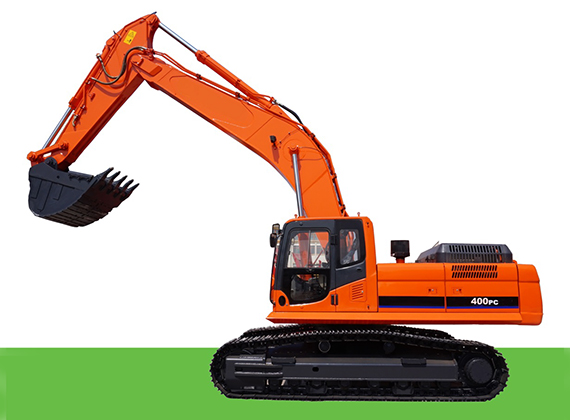

400PC Excavator
400PC excavator is equipped with the exclusive highly efficient hydraulic control system, and has the powerful travel traction.
Advantages
Exclusive highly efficient hydraulic control system
Engine: ISUZU or Cummins
Main pump: Kawasaki
Control valve: Kawasaki or KYB
Travel motor: Sunjin (Korea)
Swing motor: Sunjin (Korea)
Powerful travel traction
Effectively prevent mixing of soil and rock
Highly efficient and rapid operations
High-strength frame structure and greater ground clearance
Safe and open engine hood
Convenient and swift maintenance

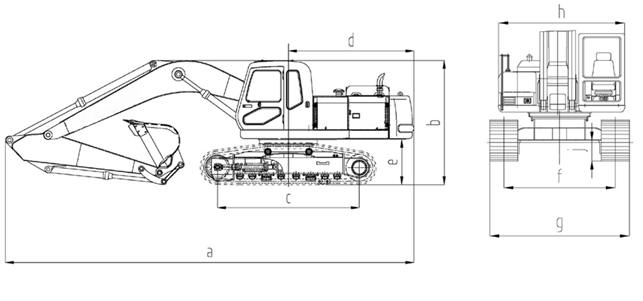

Structure
| Transport length | 11380mm |
| Transport arm height | 3720mm |
| Wheelbase | 4050mm |
| Radius of gyration platform end | 3530mm |
| Counter weight ground clearance | 1250mm |
| Track gauge | 2570mm |
| Total width of undercarriage | 3350mm |
| Width of upper structure | 3155mm |
| Width of track shoe | 600mm |
| Ground clearance | 545mm |
| Total length of travel mechanism | 4975mm |
| Total width of cabin | 1035mm |
| Cabin height | 853mm |

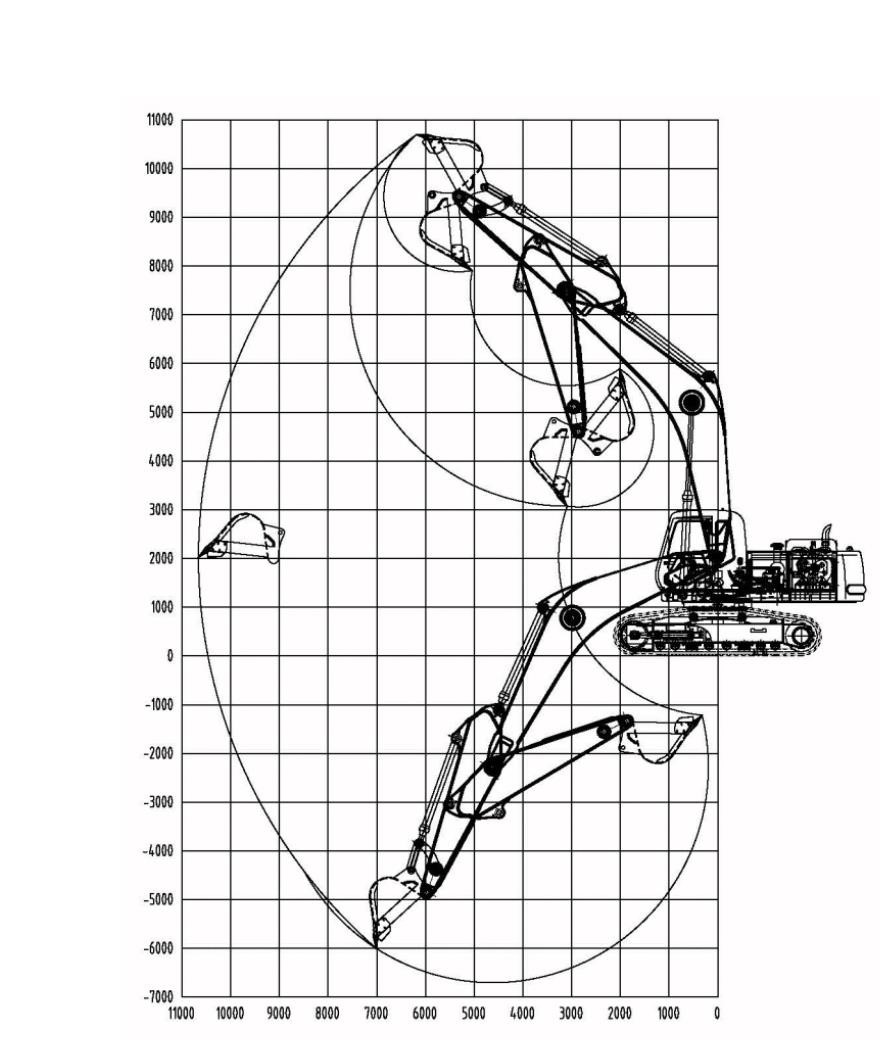

Application scopeStructure
| Maximum digging depth | 7135mm |
| Maximum digging height | 10100mm |
| Maximum unloading height | 7180mm |
| Maximum digging radius | 10635mm |
| Minimum turning radius | 4485mm |
Technical Specification
| Weight | 37.8t |
| Bucket capacity | 1.9m3 |
| Engine rated power | 214(287)kW |
| Swing speed | 8.2min-1 |
| Travel speed (high/low) | 4.9-2.9km/h |
| Ground specific pressure | 0.69kg/cm2 |
| Gradeability (%) | 70 |
| Digging force | 240KN |
| Boom length | 6500mm |
| Arm length | 2902mm |
